Setup Tissue Sampling and Scanning (BVD, Genomic, Other)

Setup Tissue Sampling and Scanning (BVD, Genomic, Other)

Complete guide on how to setup the BoviSync app for tissue sampling. This process works for BVD, Genomic, or Other types of Tissue Sample recording.  While a barcode scanner is not required, it is highly recommended to ensure the greatest accuracy possible.

NEW!  See how to use your device's camera to scan barcodes directly into BoviSync!

Mobile App Setup

You can configure the mobile app 2 different ways.
  1. Option 1 would be using a Chore List   (Chore lists are used when you need to locate the animal receiving the tissue sample.  Think of this like a To-Do list)
  2. Option 2 would be using an Event Set  (Event sets are used when you already know which animals are going to receive a sample.  Think of this like a quick entry)

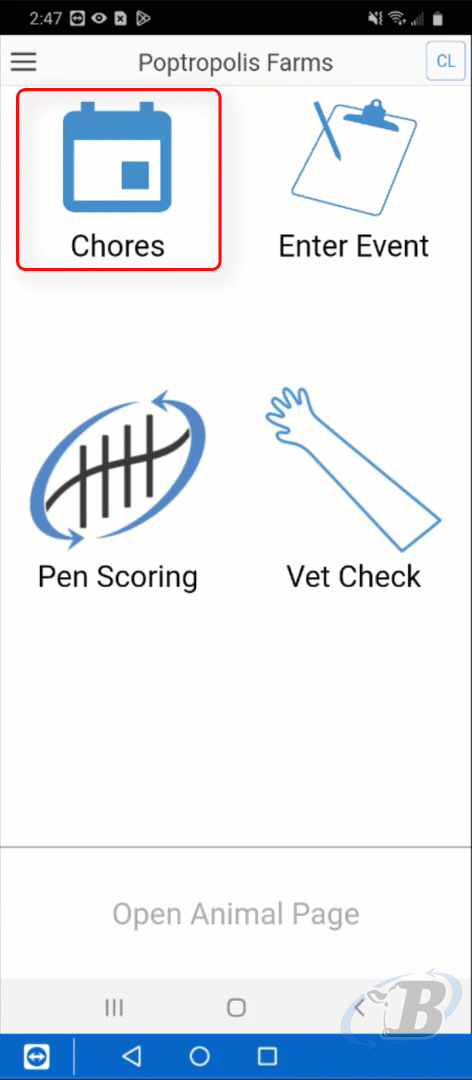

Chore List Setup

See video example below setting up a Chore List with a Tissue Same chore type.
Chore Lists are often used in combination with a Protocol. If you need help setting up a protocol please contact our Customer Success Team.

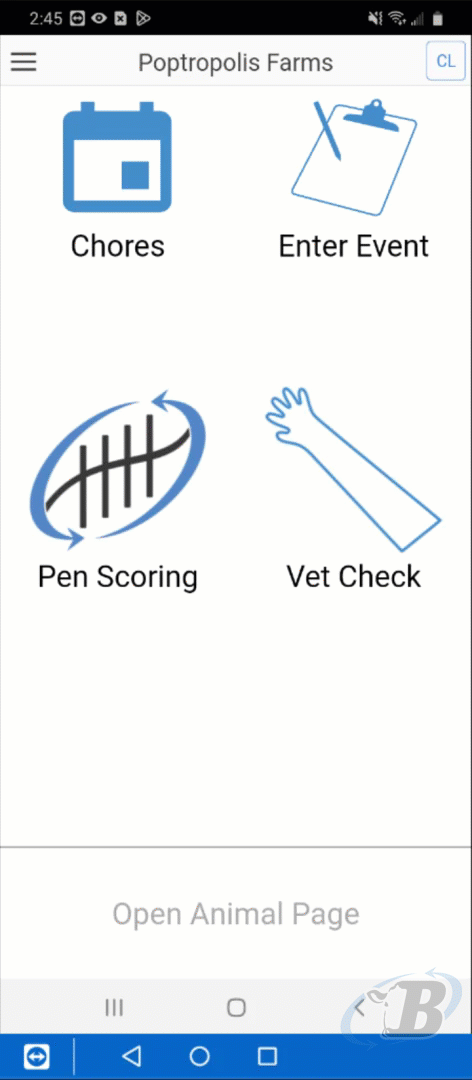

Event Set Setup

See video example below setting up an Event Set with a Tissue Sample event type.


Don't forget to save settings after making changes:  Save BoviSync App Settings



Mobile App Entry Demo

Data entry demo showing how easy it is to scan tissue sample IDs directly into the BoviSync app:




Data Analytics

After all of the tissue samples have been entered onto the device and synced, you can view the data in Bovi-Insights. Below are some popular reports to get you started.

Most Recent Tissue Samples:  https://bovisync.farm/report/LFO9AY
Displays all animals on the farm along with the following items: Last Tissue Sample Date,  Last Tissue Sample Type, Last Tissue Sample ID, Last Tissue Sample Lab,  Last Tissue Sample Note,  Last Tissue Sample Technician

All Tissue Samples (Last 90 days):  https://bovisync.farm/report/LNPFU7
Displays only animals that received tissue samples in the last 90 days.  This report is grouped by Month and sub grouped by Event Date.  Click on the "+" symbol to dig deeper into the data.


  1. 2D Bluetooth Barcode Scanner
  2. RFID Scanner
Still can't find what you need?  Contact our Customer Success Team, we are happy to help!



FAQ


Q:   Can I use an Bluetooth RFID wand and a Bluetooth Barcode scanner at the same time?
A:   Yes, absolutely!  This is the preferred method to ensure the best data accuracy possible.


Q:   The scanner is connected but the entire text isn't sending through?
A:   Make sure that GBoard is installed and enabled as your default keyboard. For additional help setting up GBoard click here

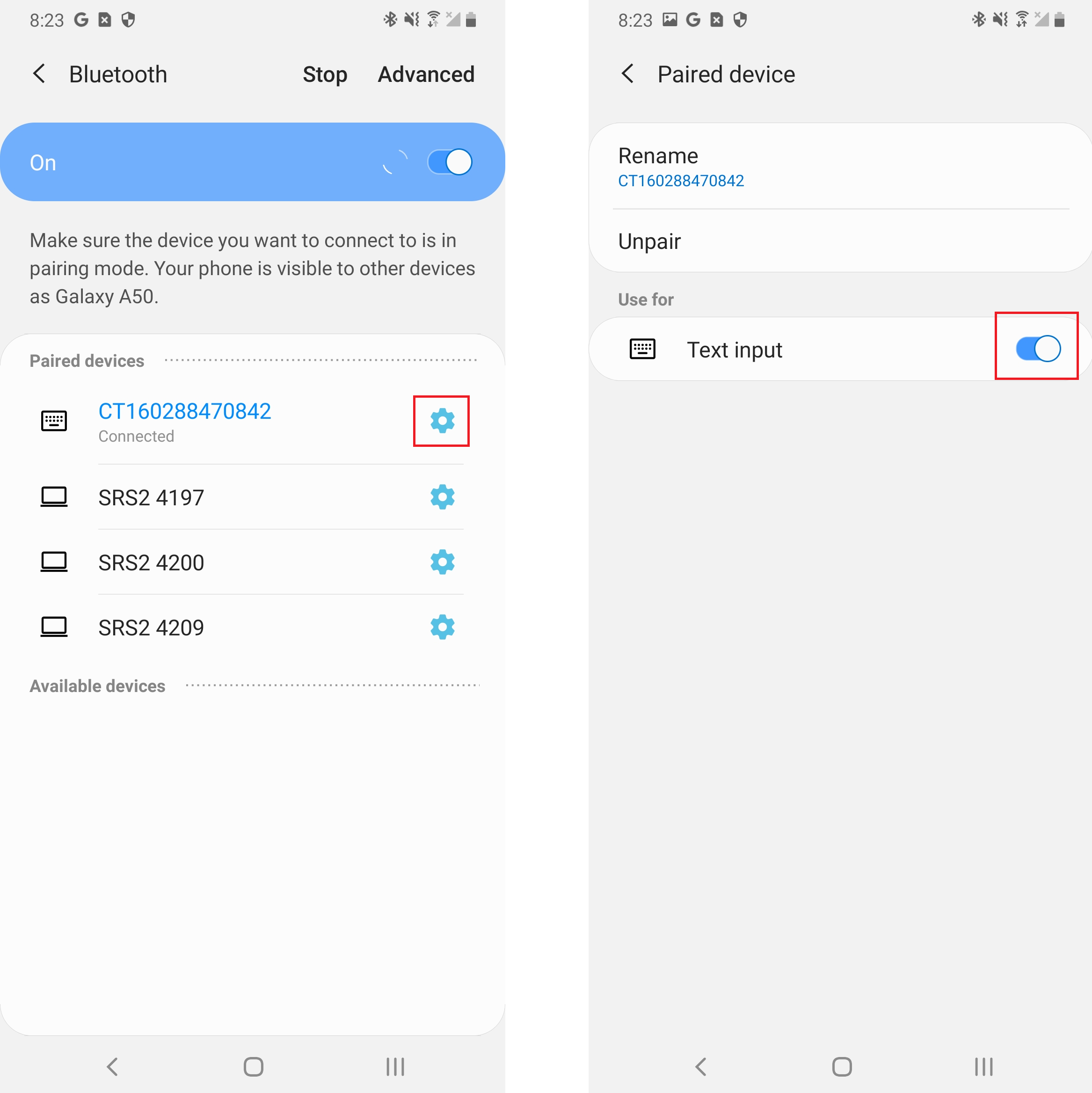

Q:  Why isn't the barcode scanner sending data to the phone?
A:  Make sure that Text Input is enabled in Bluetooth Settings for the Barcode Scanner
Make sure the Barcode Scanner is connected only by Bluetooth and the EID reader is connected in the Bovisync app.
